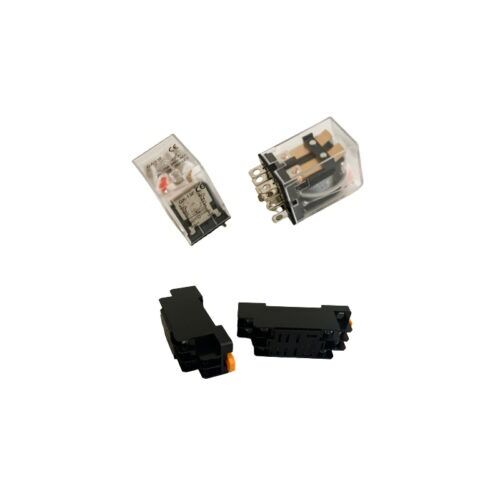

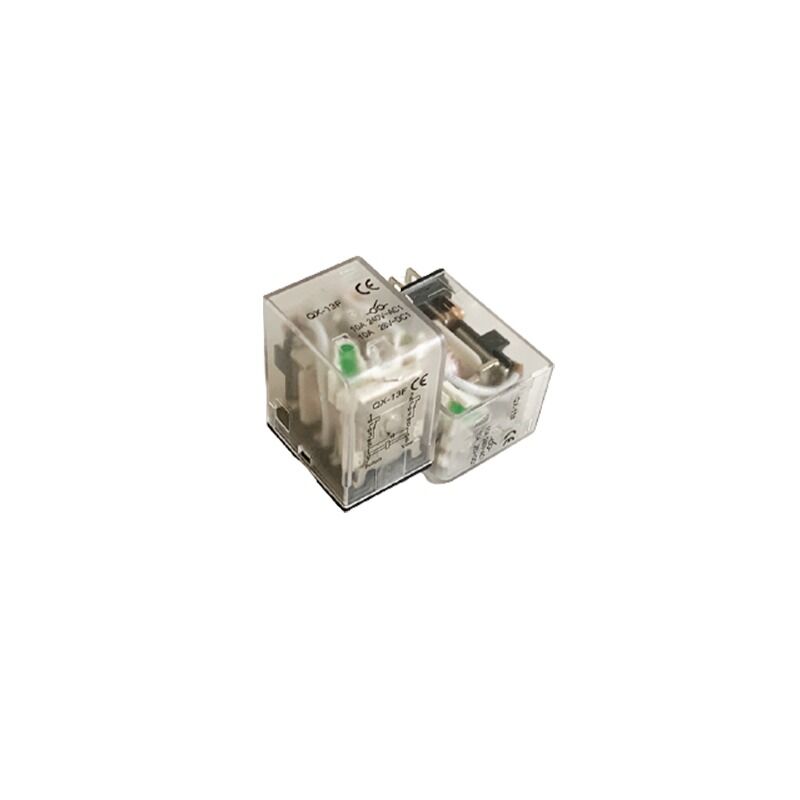

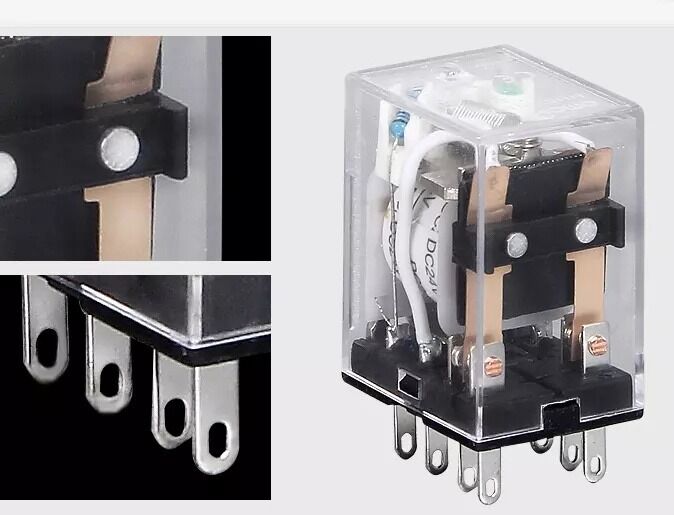

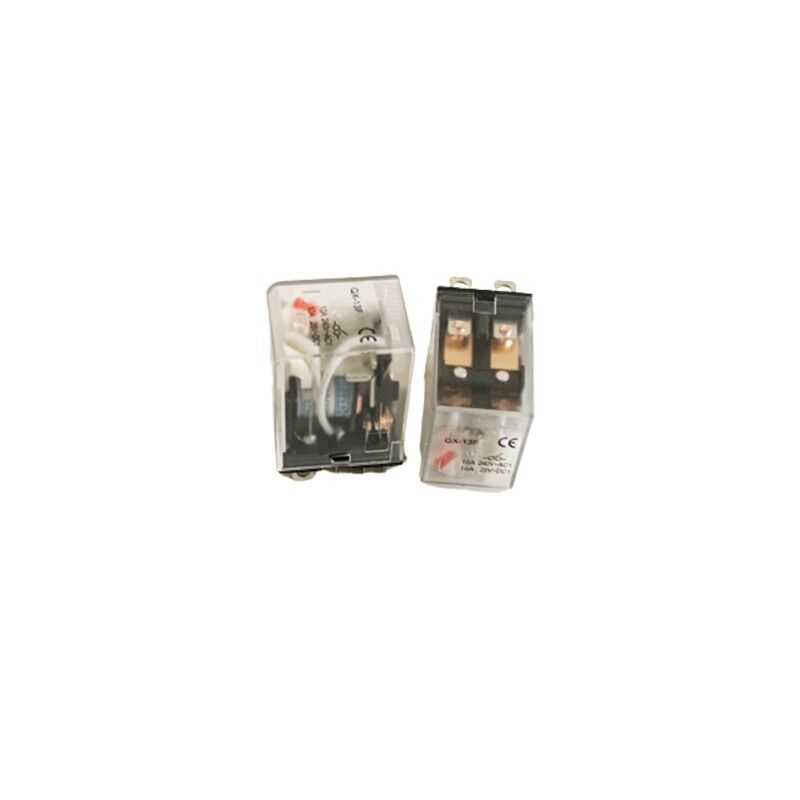

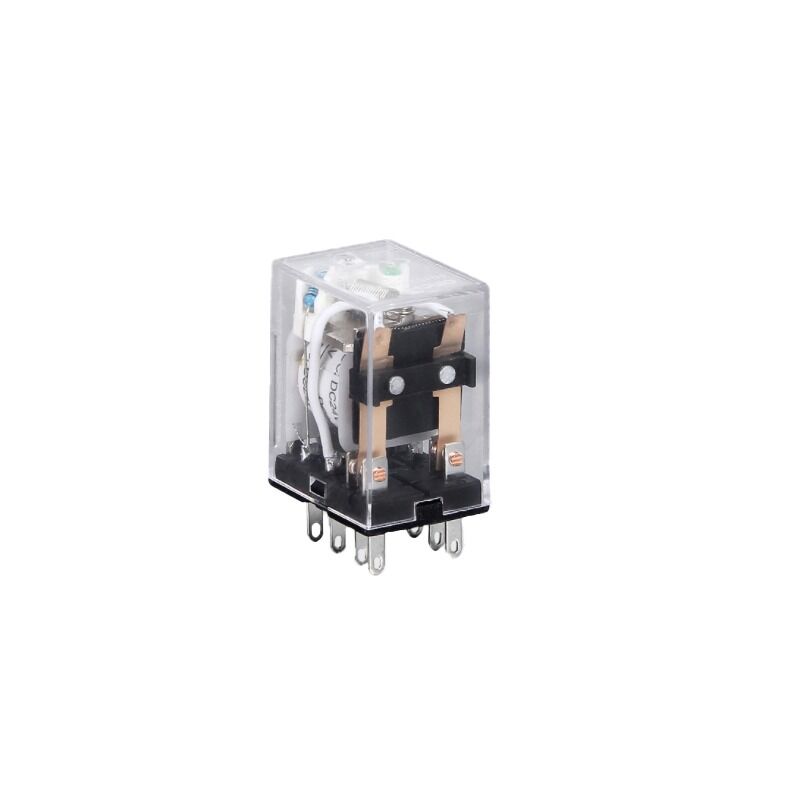

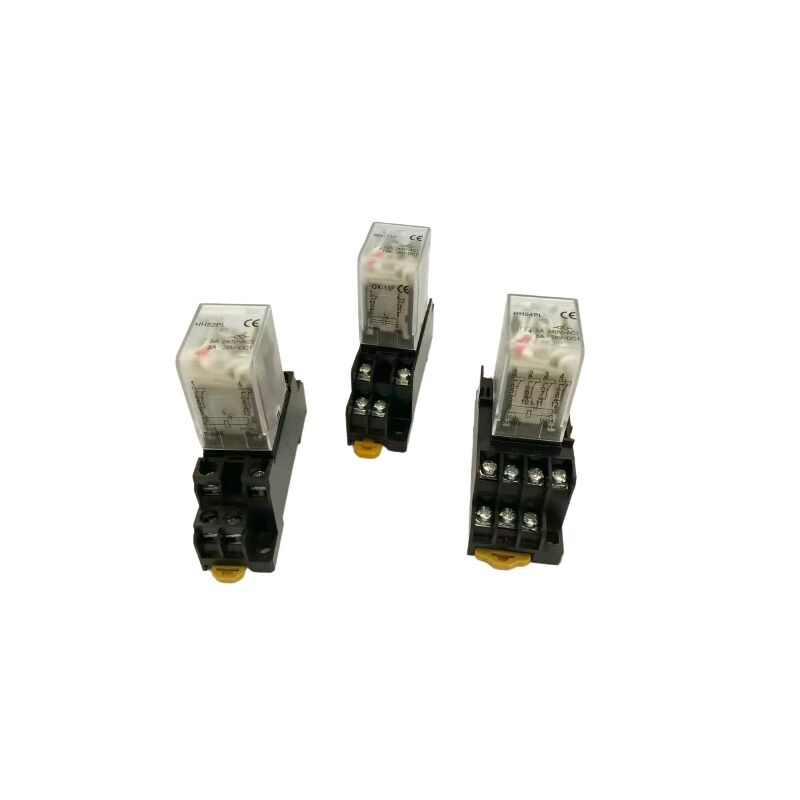

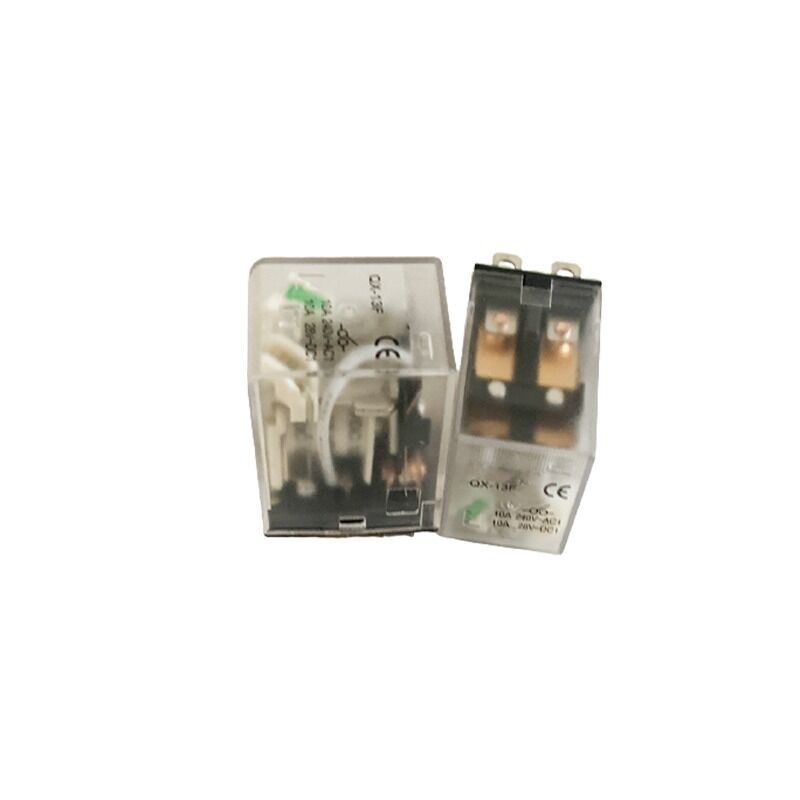

MY2N MY4N MK2P MK3P relay

Our strengths are our speedy support, excellent product appeal,

and our ability to offer reliable advice.

 In addition to our publicized products, we handle a large number of other items.

Please consult with us on any matter or issue you may have.

We can provide new products and technology a step ahead of other companies.

Low Signal Relay

Ultra-miniature, Highly Sensitive SPDT Relay for Signal Circuits

• Ultra-miniature at 12.5×7.5×10 mm (L× W× H).
• Wide switching power of 1 mA to 1 A.
• High sensitivity: 150 mW nominal coil power consumption.
• Fully-sealed construction offering environment resistance.
• Conforms to FCC Part 68 requirements for coil to contacts.
  (1,500 V, 10 × 160 νs)

Compact DC Power Relays Capable of
Switching 400 V 15 A DC loads

• Actualize a high capacity interruption through the function of extinction of magnetic arc by adopting high-efficiency magnetic circuit.
• Actualize improvement of inrush-withstand performance and a long-life by adopting Omron’s own contact driving system.
• Actualize the power saving.
• Small and lightweight type.
  Size: H31 mm × W27 mm × L44 mm, Weight: approx. 50 g

V Miniature Basic Switch

Miniature Basic Switch that Offers High Reliability and Security

• Wide variation of best-selling microswitches with switching currents of 10 to 21 A.
• Can be used for interrupting current when doors are opened or closed.
• Available in two types of cases: thermoplastic resin and thermosetting resin.
