A simple foot switch is actually a built-in travel switch. When the foot pedal gives a signal, the switch is executed. But in the field of welding, the function of the foot switch also plays the role of controlling the output current. This type of foot switch can also be divided into two categories: one, mechanical foot switch; two, inductive foot switch. The mechanical foot switch is a traditional rack and pinion drive, and the induction type is based on the principle of electromagnetic induction.

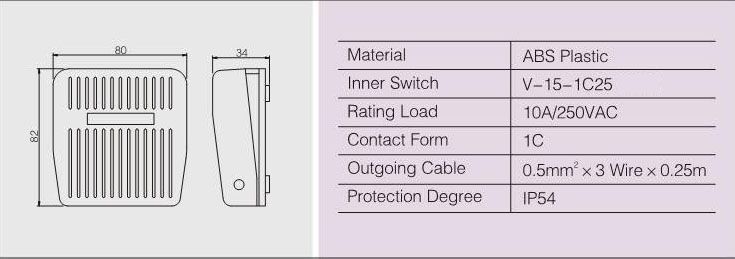

| Brand Name | ZJSHUYI |
|---|---|
| Max. Current | 15A |
| Max. Voltage | 250v |
| Protection Level | IP54 |
| Operating Temperature | -10-70℃ |
| Certification | CE |
The foot switch is a switch that controls the on-off of the circuit by stepping on or stepping on it. It is used in the control circuit that cannot be touched by both hands to replace the hands to achieve the purpose of operation.
Foot switches are widely used in medical equipment, stamping equipment, welding equipment, textile equipment, printing machinery
Features
1. The surface is sprayed and coated, with excellent impact resistance, wear resistance and high temperature resistance (180 degrees).
2. There is a cable head at the lead-out part of the cable, so the waterproof, oil-proof and impact-proof effects are outstanding.
3. The standard configuration of cable lead-out length is 2 meters, M type is 0.5 square meters; H type is 0.75 square meters.
4. The built-in micro switch has obtained UL, VDE, TUV, CE, CCC certification.
5. The built-in micro switch contacts are plated with 24K gold.
6. “H” type achieves IP65 protection level.
7. All models have passed CE certification. ·
8. Obtained China’s product safety CCC certification.
