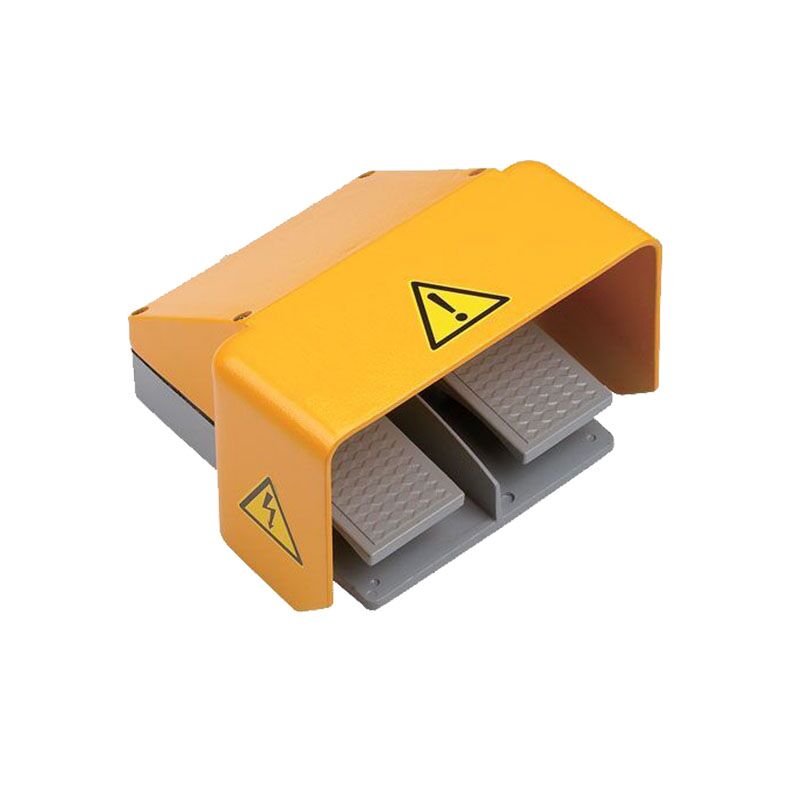

Kinds of shell’s material for choice, such as engineering plastic,
steel panel, aluminium alloy, etc;
Metal shell use the stregenthening to reast the surfase,
bears theimpact, the wearability, thermostable;
Cable lock-in jacket is made for the cable coming out
and it iswaterproof,grease proofing;
Switch bottom is equipped with the rubber pad, for skidproof;
Widely used for control in industrial automation
equipments,transport, pressing, medical treatment, test and etc.
| Brand Name | ZJSHUYI |
|---|---|
| Origin | Zhejiang, China |
| Material Body | Aluminium |
| Model | SYF-809 |
| Colour | Customizations |
| Rating Load | 10A/250V |
| Operating Temperature | -10℃-+70℃ |
| Certification | CCC, CE |
| Warranty | 18 months |
| Max. Current | 15A |
| Mechanical Life | 1,000,000 times above |
| Electrical life | 100,000 times above |
| Application | Industrial automation equipment etc |
1.According to the difference of load and current value, rated load
should be taken note.Current value of this series is 10A and 15A;
2.When transporting and moving, pls take note of the short circuit
or open circuit may happen in internal wiring;
3.Please take note of the level of protection when used in water, oil and
bug dust.This series has protective type and unprotective type;
4.The immediate cause for broken is stress and attack, please pay attention;
5.Warning mark’Danger! High Voltage!’ and’Take note!’ remind us
pay attention to personnel safety and correctly operation.
1. Q: Can you provide OEM service?
A: Yes, OEM is feasible for all models.
2. Q: What’s the MOQ?
A: For testing purpose, 1 pc is ok.
3. Q: If i want to place order, what’s the payment method you accept?
A: We accept T/T, Paypal, Western union, etc.
4. Q: If i want to place order, what’s the process?
A:You can send inquiry to us by this site, or send us by email, we will reply ASAP.
5. Q:How long is the delivery time?
A:Normally, 3-15 working days, The fastest delivery within 1-3 working days.
Kinds of shell’s material for choice, such as engineering plastic, steel panel, aluminium alloy, etc.
Metal shell use the stregenthening to reast the surface, bears the impact, the wearability, thermostable.
Cable lock-in jacket is made for the cable coming out and it is waterproof, grease proofing.
Switch bottom is equipped with the rubber pad, for skidproof.
Widely used for control in industrial automation equipments, transport, pressing, medical treatment, test and etc.
