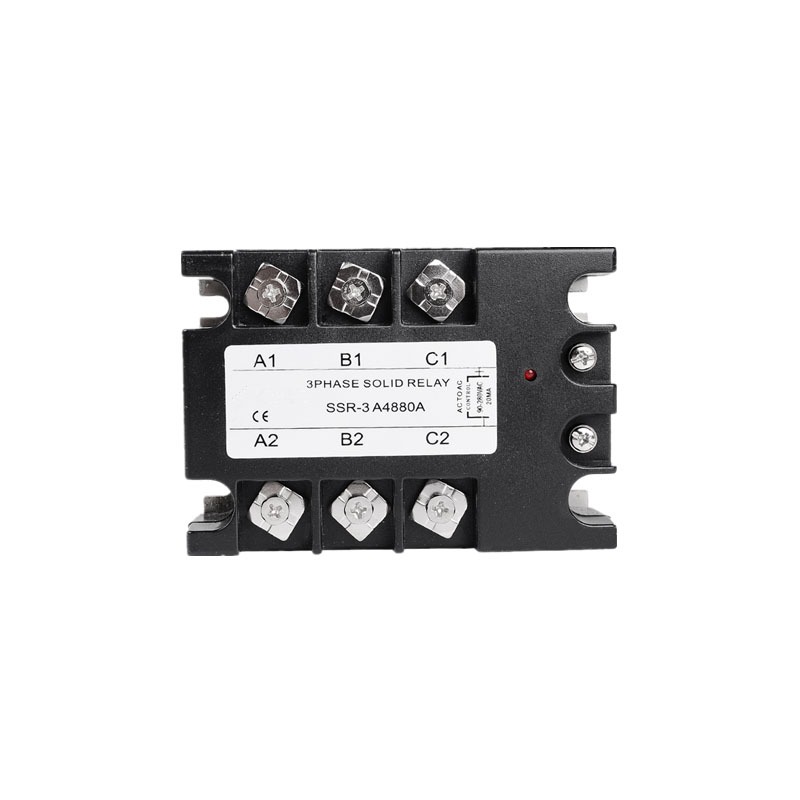

SYSSR-3AA4880 80A Three Phase Solid State Relay AC8-250V Input Control AC 75~480V Output Load 80A 3 Phase SSR High Power

  • Bolt Installation-Horizontal Type Three phase AC Solid State Relay
  • Triac/One-way SCR antiparallel NO output
  • DC-AC DC Singnal control AC load IAC-AC AC Signal control AC load
  • Optoelectronic devices Isolation
  • Zero crossing / Random Trigger Form
  • Built-in RC absorbing circuit
  • LED Status Indicator
分类 , , 标签
ASK FOR A QUOTE

Parameter

其他信息

Product name

industrial solid state relay
Phase

3 phase
Feature

Small volume and dimensions
Type

solid state overload relays
Main application

Industrial automation installment
Output Current

5A to 600A
heat sink

free choice
load current safety factor

inductive load 30%-40%
Function

For high power load

Features:

Model Name

 SYSSR-3AA4880

Load Current

80A

Load Voltage

75-480VAC

Control Voltage

8-250VAC

Load mini current

0.06A

Frequency range

50-60HZ

Work instruction

LED

Dielectric Strength

2500VAC

Type

Bolt Installation-Horizontal Type

AC-AC AC signal control AC load

Outshape Dimensions & Connection Diagram:



Main Application:

  • Industrial automation instaillment
  • Computer periphery connection
  • Illumination, stage lighting control
  • Electric stove, heating, warm control
  • Street light, signal light, traffic light, etc
  • AC motor control
  • Intermediate relay, solenoid valve control.
  • Numerical control machinery, external guidance system.
  • Color photo enlargement, film processing equipment, injection machinery .
  • Automatic fire control and security system
