China Yaohua Electric Group Co., Ltd.

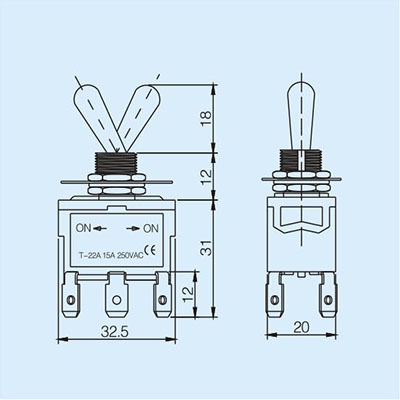

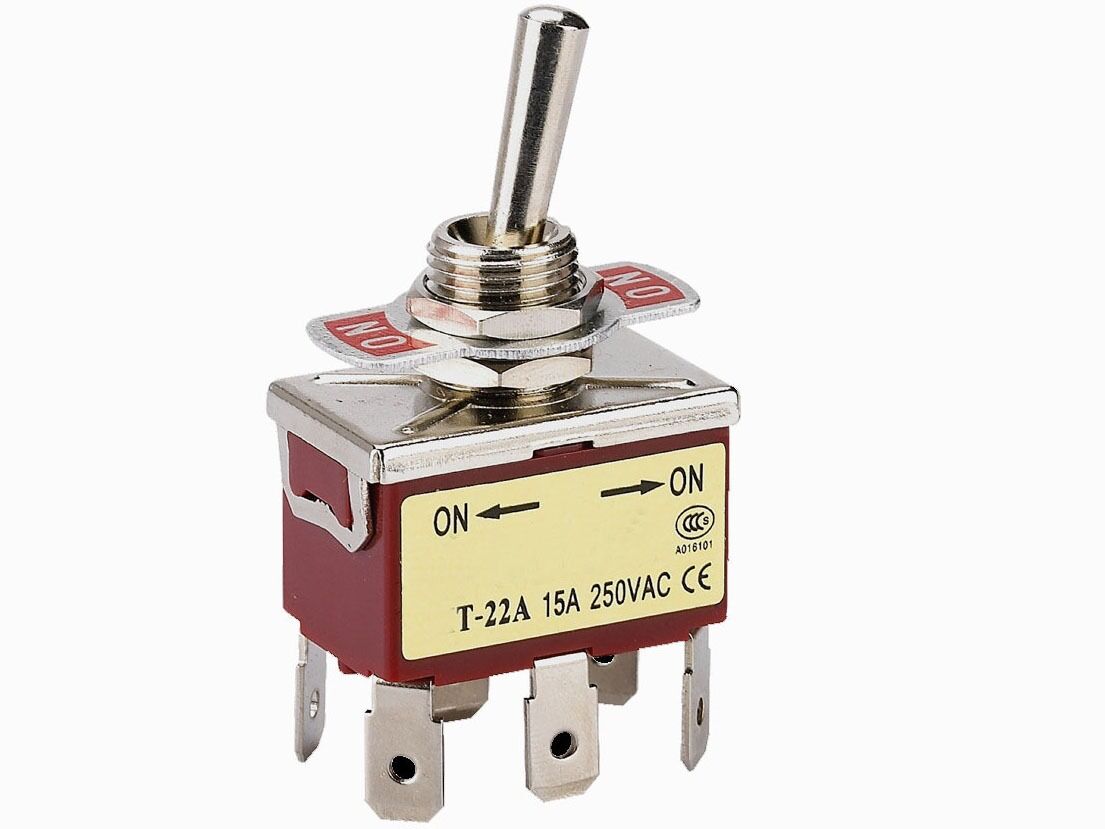

SYT-22A 15A/250VAC 25A/250VAC Double pole double throw type Toggle switch

Double pole double throw type  Toggle switch:

Model Number:T-22A

Rating at:15A/250VAC 25A/250VAC
Adopt outer shell with intensive plastic and sealed construction, better mechanical strength and water-proof and oil-proof;Side fixed form and swift contact;”Variety of levers;Widely used in Mechanical equipment ,automatic machine, and instrument, electro motion tool etc.

Parameter

其他信息

Brand Name

ZJSHUYI

Model Number

T-22A

Model Name

Double pole double throw type

Rating Load

15A/250VAC, 25A/250VAC

Operating Temperature

-25~+80℃

Product name

Toggle switch

Application

Home appliance,electronic device,auto electronic,automation

Material Body

PBT cover and PC base

Protection

IP40

Mechanical Life

500,000 above

Electrical life

100,000 times above

Colour

blue

Operating speed

30times/min

Characteristics

Compact Design

Place of Origin

Zhejiang, China

Application attentions:

1.According to the difference of load and current value, rated loadshould be taken note.Current value of this series is 10A and 15A;

2.When transporting and moving, pls take note of the short circuit
or open circuit may happen in internal wiring;

3.Please take note of the level of protection when used in water, oil and
bug dust.This series has protective type and unprotective type;

4.The immediate cause for broken is stress and attack, please pay attention;

5.Warning mark’Danger! High Voltage!’ and’Take note!’ remind us
pay attention to personnel safety and correctly operation.
