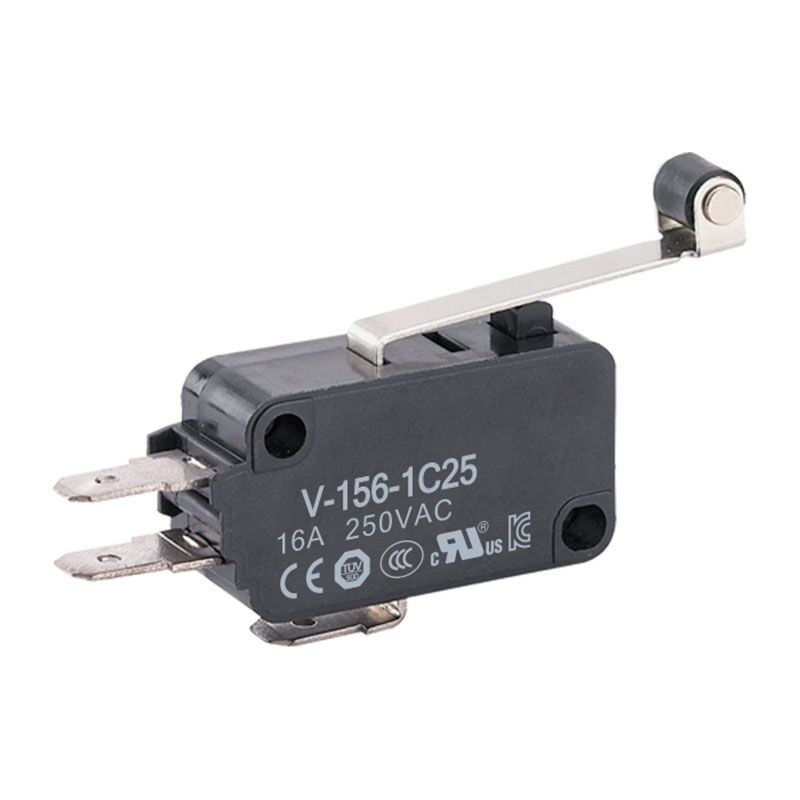

SYV-156-1C25 15A/250VAC Roller lever Micro Switch

Roller lever Micro Switch:
Model Number: V-156-1C25
Rating at: 16A/250VAC
Adopt thermosetting plastic or thermoplastic;
Small contact gap, snap action, high sensitivity and smalloperating travel;
Variety of levers;
Widely used in appliance, electronic equipment ,automaticmachine,
communication equipment, car electric, apparatusand instrument,
electro motion tool etc.

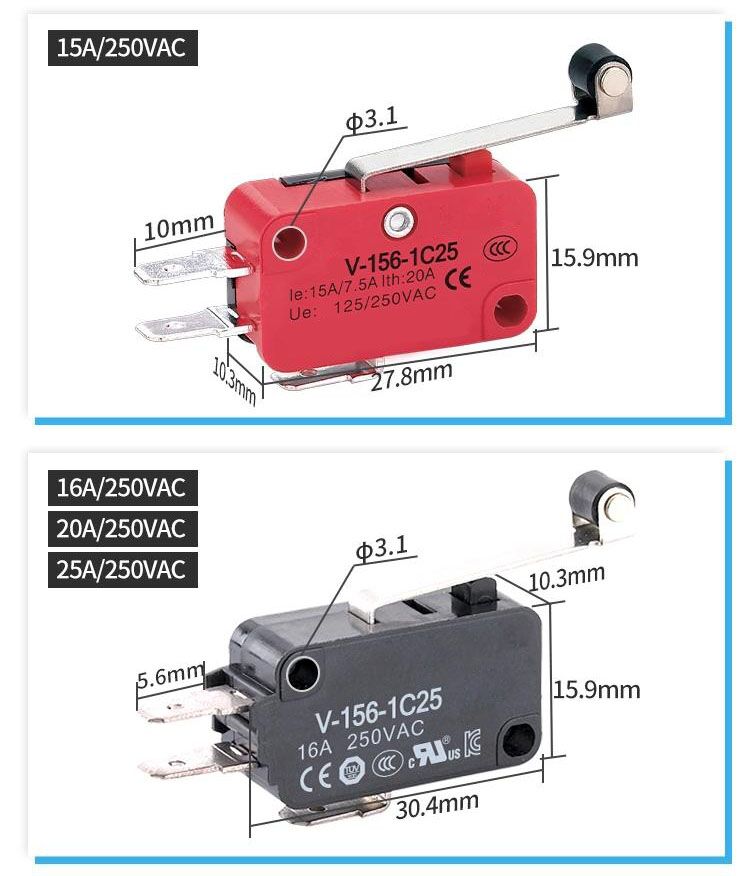

Parameter

其他信息

Brand Name

ZJSHUYI

Model Name

Roller lever micro switch

Max. Current

15A

Operating Temperature

-25℃ to +85 ℃

Product name

push button micro switch

Application

Home appliance,electronic device,auto electronic,automation

Material Body

PBT cover and PC base

Max. Voltage

250VAC

Protection

IP40

Mechanical Life

1,000,000 times above

Electrical life

100,000 times above

Colour

black, red, white

Operating speed

0.1mm-1m/s

Model Number

V-156-1C25

Characteristics

Compact Design

Opearting force

25g(0.245N)-400g(3.92N)

Place of Origin

Zhejiang, China



Application attentions:

1.According to the difference of load and current value, rated loadshould be taken note.Current value of this series is 10A and 15A;

2.When transporting and moving, pls take note of the short circuit
or open circuit may happen in internal wiring;

3.Please take note of the level of protection when used in water, oil and
bug dust.This series has protective type and unprotective type;

4.The immediate cause for broken is stress and attack, please pay attention;

5.Warning mark’Danger! High Voltage!’ and’Take note!’ remind us
pay attention to personnel safety and correctly operation.
