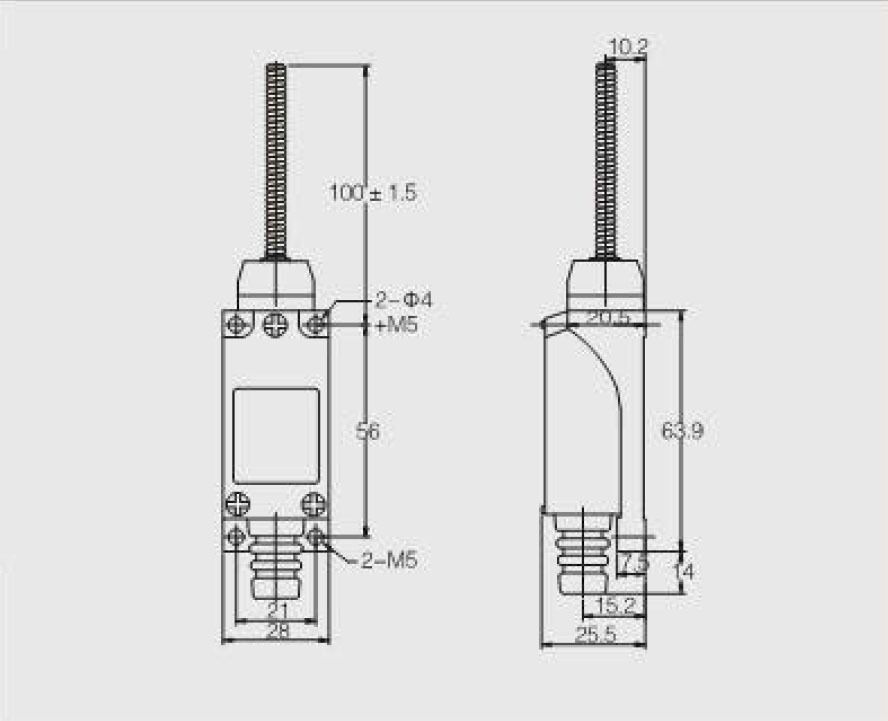

Universal spring rocker type Micro Switch:
Model Number:Z-8/167
Rating at: 5A/250VAC
Adopt outer shell with intensive plastic and sealed construction, better mechanical strength and water-proof and oil-proof;Side fixed form and swift contact;”Variety of levers;Widely used in Mechanical equipment ,automatic machine, and instrument, electro motion tool etc.
| Brand Name | ZJSHUYI |
|---|---|
| Model Number | Z-8/167 |
| Model Name | Universal spring rocker type |
| Max. Voltage | 250VAC |
| Max. Current | 5A |
| Operating Temperature | -20~+60°C |
| Product name | Push button travel switch Z8 series |
| Application | Home appliance,electronic device,auto electronic,automation |
| Material Body | PBT cover and PC base |
| Protection | IP65 |
| Mechanical Life | 1,000,000 times above |
| Electrical life | 100,000 times above |
| Colour | black |
| Operating speed | 5mm-50m/s |
| Characteristics | Compact Design |
| Place of Origin | Zhejiang, China |
Application attentions:1.According to the difference of load and current value, rated loadshould be taken note.Current value of this series is 10A and 15A;
2.When transporting and moving, pls take note of the short circuit
or open circuit may happen in internal wiring;
3.Please take note of the level of protection when used in water, oil and
bug dust.This series has protective type and unprotective type;
4.The immediate cause for broken is stress and attack, please pay attention;
5.Warning mark’Danger! High Voltage!’ and’Take note!’ remind us
pay attention to personnel safety and correctly operation.
