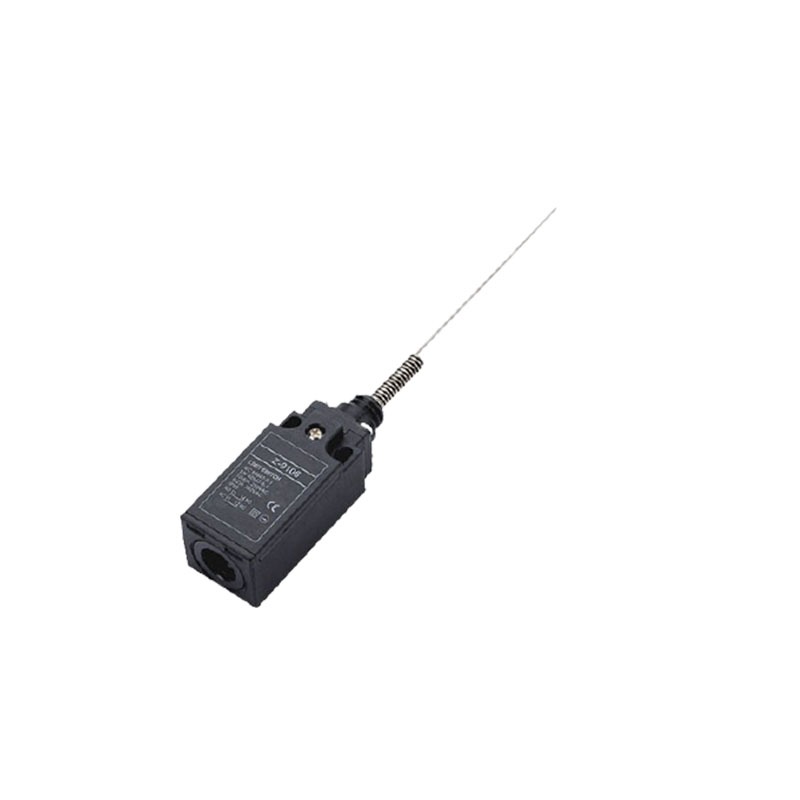

SYZ-9106 10(4)A/250VAC 6(2)A 380VAC Cat whisker type Micro Switch

Cat whisker type Micro Switch:
Model Number:Z-9106

Rating at: 10(4)A/250VAC,6(2)A 380VAC
Adopt outer shell with intensive plastic and sealed construction, better mechanical strength and water-proof and oil-proof;Side fixed form and swift contact;”Variety of levers;Widely used in Mechanical equipment ,automatic machine, and instrument, electro motion tool etc.

Parameter

其他信息

Brand Name

ZJSHUYI

Model Number

Z-9106

Model Name

Cat whisker type

Rating Load

10(4)A/250VAC,6(2)A 380VAC

Operating Temperature

-10~+70℃

Product name

Travel switch Z9 series

Application

Home appliance,electronic device,auto electronic,automation

Material Body

PBT cover and PC base

Protection

IP65

Mechanical Life

1,000,000 times above

Electrical life

100,000 times above

Operating speed

5mm-0.5m/s

Characteristics

Compact Design

Place of Origin

Zhejiang, China



Application attentions:

1.According to the difference of load and current value, rated loadshould be taken note.Current value of this series is 10A and 15A;

2.When transporting and moving, pls take note of the short circuit
or open circuit may happen in internal wiring;

3.Please take note of the level of protection when used in water, oil and
bug dust.This series has protective type and unprotective type;

4.The immediate cause for broken is stress and attack, please pay attention;

5.Warning mark’Danger! High Voltage!’ and’Take note!’ remind us
pay attention to personnel safety and correctly operation.
