Applicable to AC 50Hz, voltage 380V and DC voltage 220V circuit, used to control the movement of the mechanism, the stroke and change the direction or speed of the movement.

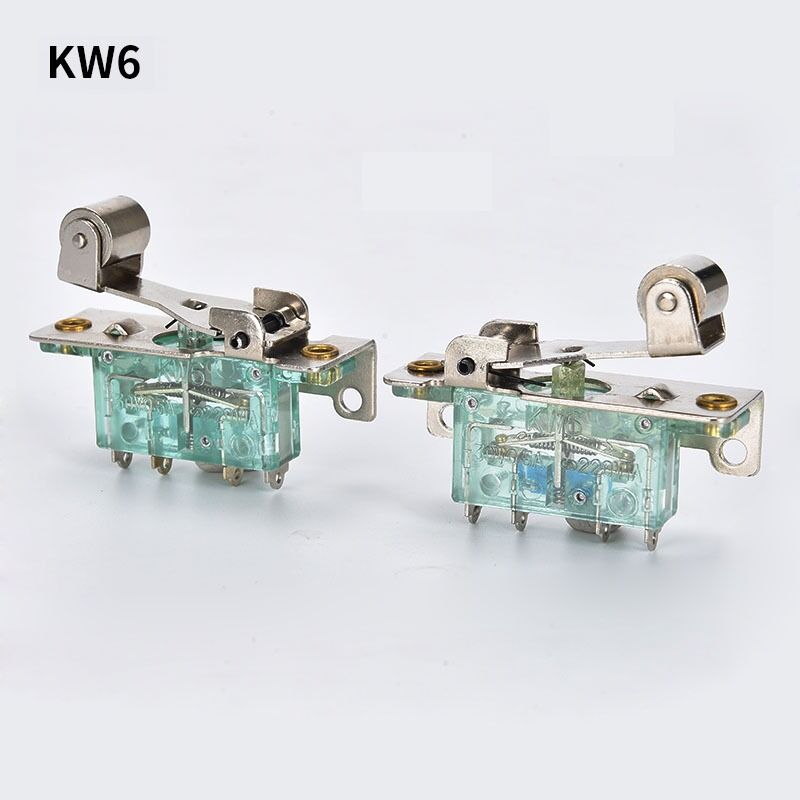

| Model Name | KW6 |
|---|---|
| Max. Current | 3A, 8A |
| Colour | blue |
| Max. Voltage | AC380V, DC220V |
| Packing quantity | 10pcs/box |
Magnetic blowing stroke switch: a stroke switch that is mainly driven by the magnetic field to move the arc in the air to cause the arc to be extinguished. The magnetic blowing here mainly refers to an arc extinguishing method.
Widely used in cranes, cable cars, mining machinery, subway doors, printing machinery, textile machinery and other mechanical transportation industries as control or auxiliary switches.
