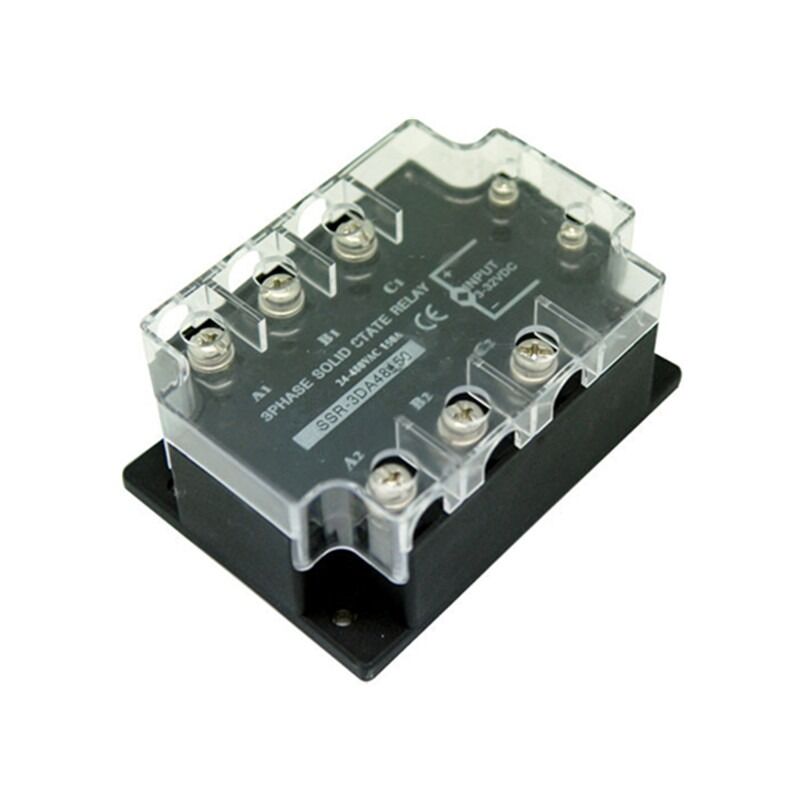

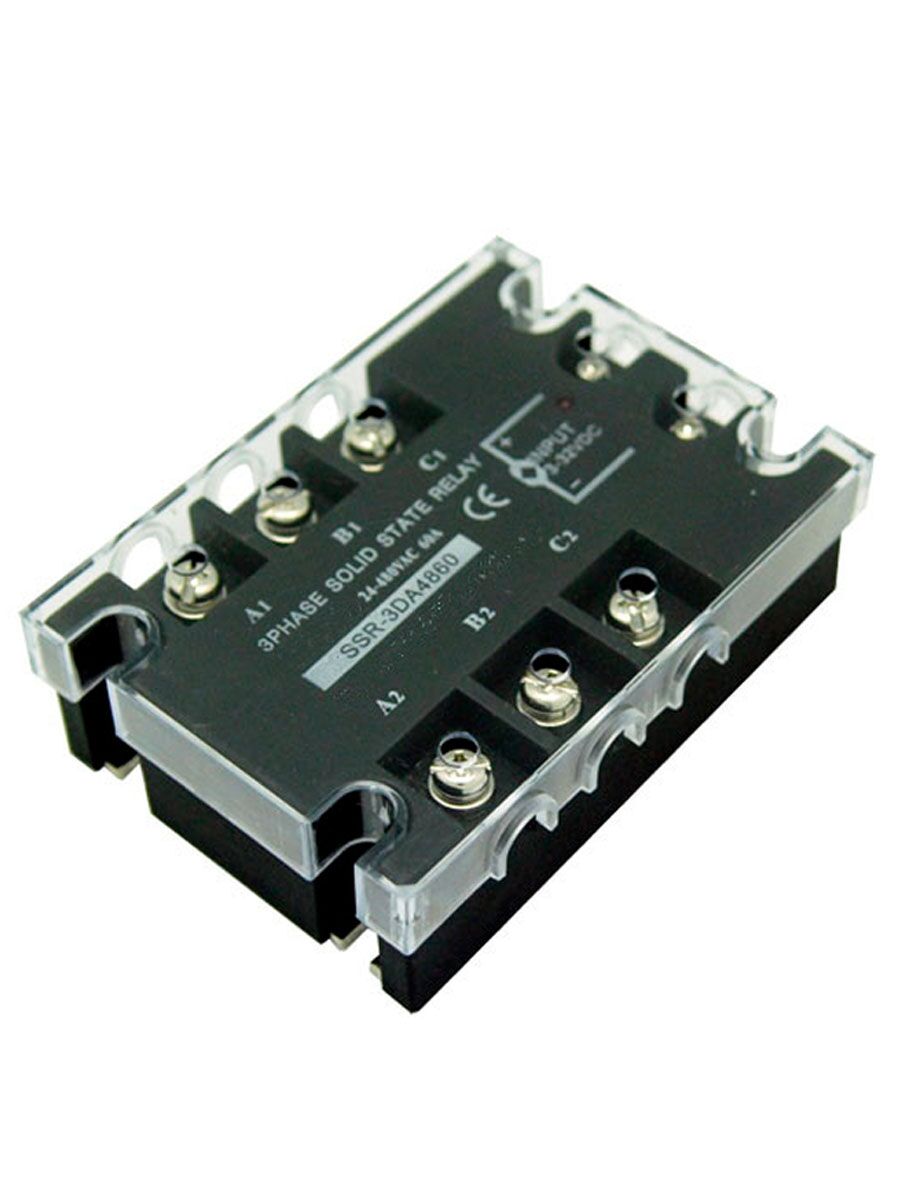

SYSSR-3DA4860 3 Phase SSR Relay 60DA Resistance Regulator Solid State Relay

Bolt Installation-Horizontal Type Three phase AC Solid State Relay
Triac/One-way SCR antiparallel NO output
DC-AC DC Singnal control AC load IAC-AC AC Signal control AC load
Optoelectronic devices Isolation
Zero crossing / Random Trigger Form
Built-in RC absorbing circuit
LED Status Indicator

Categories Solid State Relay, SSR-3DA type, Three phase solid state relay Tag SSR-3DA

Parameter

Additional information

Product name	Regulator Solid State Relay
Model Number	SSR-3DA
Phase	3 phase
Feature	Small volume and dimensions
Type	solid state overload relays
Main application	Industrial automation installment
Output Current	5A to 600A
heat sink	free choice
load current safety factor	inductive load 30%-40%
Function	For high power load

SYSSR-3DA4860 3 Phase SSR Relay 60DA Resistance Regulator Solid State Relay

Features:

Model Namec	SYSSR-3DA4860 3 Phase SSR Relay 60DA Resistance Regulator Solid State Relay
Load Current	60A
Load Voltage	75-480VAC
Co	3-32VDC
Load mini current	0.08A
Frequency range	50-60HZ
Work instruction	LED
Dielectric Strength	2500VAC
Type	Bolt Installation-Horizontal Type
	AC-AC AC signal control AC load

Outshape Dimensions & Connection Diagram:

Product Introduction:

Main Application:
