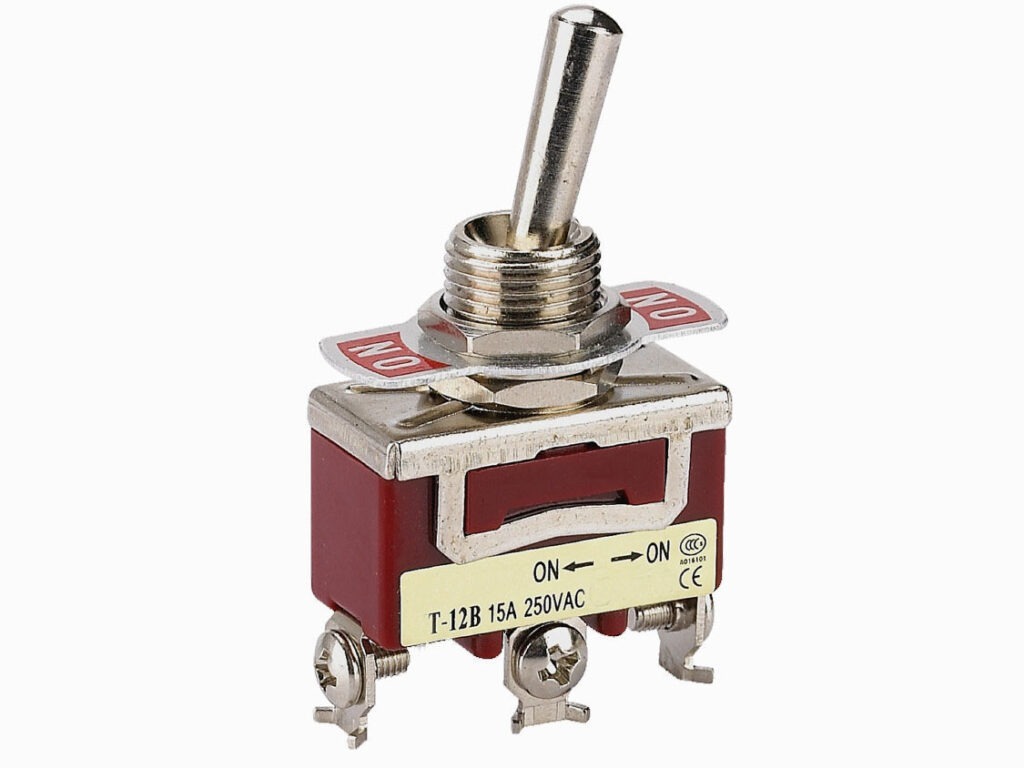

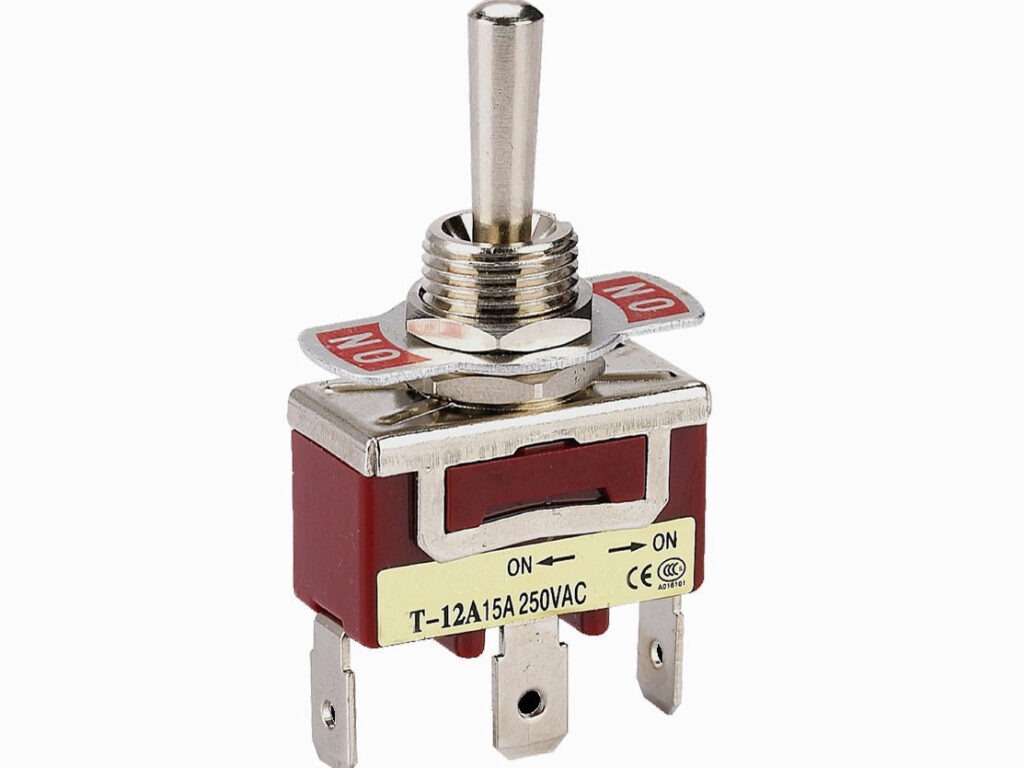

A Closer Look at the SYT-12 Single Pole Double Throw Switch.
Learn about the SYT-12 single pole double throw switch. Discover its reliable circuit control, safety features, and versatile applications for your projects.
In the world of electrical components, having precise control over your circuits is fundamental. The SYT-12 single pole double throw switch, often called an SPDT switch, is a classic and reliable solution for directing electrical flow. This versatile switch acts like a precise railroad controller for electricity, offering a simple way to choose between two different circuit paths. So, what makes this particular switch a dependable choice for so many applications? Let’s explore the functionality and design of the SYT-12.
Understanding SPDT Functionality
At its heart, the “single pole, double throw” design is what gives this switch its utility. Think of it as a single input that can be connected to one of two separate outputs. The switch has three terminals: one common terminal (the “pole”) and two other terminals (the “throws”). When you toggle the switch, it connects the common terminal to one of the other two, effectively selecting which circuit is active. This makes the SYT-12 single pole double throw switch perfect for applications like selecting one of two power sources, switching a light between two different bulbs, or changing the direction of a motor.
Durable Construction for Consistent Performance
A switch is only as good as its reliability, and the SYT-12 is built to perform. The housing is typically made from robust, heat-resistant materials that protect the internal components from physical damage and environmental factors. Internally, the contacts are often made of high-conductivity metals like silver alloy, which ensure a stable connection with minimal electrical resistance. This robust construction guarantees a long mechanical life, allowing for thousands of reliable switching cycles without failure, which is crucial for both industrial and frequent everyday use.
Safety and Ease of Use
Safety is a top priority in any electrical design, and the SYT-12 incorporates key features to this end. Many models come with an insulated actuator and a secure housing that prevents accidental contact with live parts. Furthermore, the switch typically offers a clear and decisive “snap-action” feel when toggled. This positive action provides tactile feedback to the user and ensures the contacts move quickly between positions. This reduces the chance of arcing and helps maintain a stable connection, enhancing both safety and the switch’s operational lifespan.
In summary, the SYT-12 pole double throw switch is a fundamental and highly effective component for circuit control. Its intuitive SPDT functionality, durable build, and focus on safety make it an excellent choice for a wide array of projects. Whether you are building industrial control panels, crafting custom electronics, or need a reliable selector switch, the SYT-12 pole double throw model delivers the performance and dependability you need. It remains a straightforward and trusted solution for managing electrical pathways with precision.
