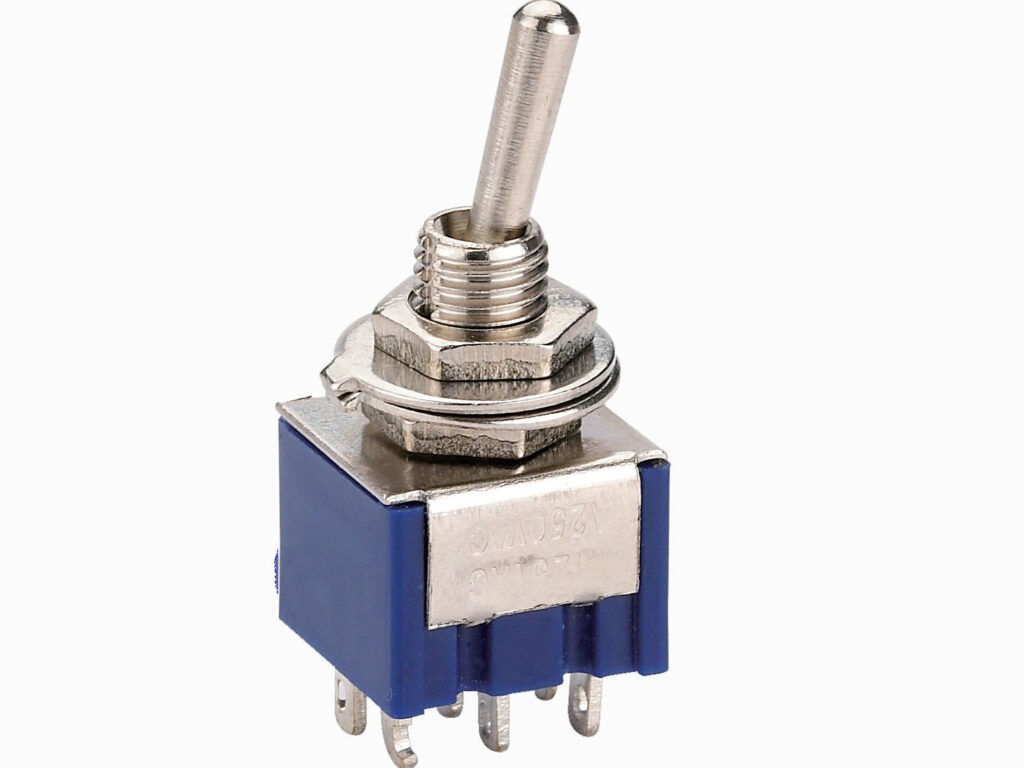

Understanding the Single Pole Double Throw Switch
Let’s break down what makes the single pole double throw switch so useful in electrical systems. Essentially, this switch gives you one input and two separate outputs. Think of it as a railroad switch for electricity – it directs power from one common source down two different paths. However, unlike a simple on/off switch, the SPDT switch never connects both outputs simultaneously. This design makes it perfect for applications where you need to alternate between two circuits safely. For instance, you might use it to switch a light between two different power sources or toggle a motor between forward and reverse directions.
Key Features for Reliable Performance
What should you look for in a quality single pole double throw switch? First, consider the construction materials. Good switches use durable thermoplastic housing and robust internal contacts that withstand repeated use. The switching mechanism itself provides positive tactile feedback, ensuring you can feel when the switch changes position. Many models feature quick-connect terminals that simplify installation and maintenance. Additionally, these switches typically offer clear ON-OFF-ON or ON-ON markings that help users understand the current circuit configuration at a glance.
Practical Applications Across Industries
The single pole double throw switch serves numerous roles in both industrial and commercial settings. In control panels, technicians use them to select between automatic and manual operation modes. Building managers might install them to switch lighting between main and emergency power systems. You’ll also find them in motor control circuits, where they help reverse rotation directions safely. The beauty of this switch lies in its simplicity – it provides a straightforward solution for any situation requiring selection between two power paths or control options.
Choosing the Right Switch for Your Needs
Selecting the appropriate single double throw switch requires considering several factors. First, verify the voltage and current ratings match your application requirements. The physical size and mounting style should fit your available space and panel design. For environments exposed to moisture or dust, look for switches with appropriate IP ratings. The actuator style – whether toggle, rocker, or paddle – should suit both the electrical requirements and user interface needs. Many suppliers offer different contact materials suitable for various load types, from standard electrical loads to more demanding inductive loads.
Why Reliability Matters Most
The fundamental advantage of using a well-made single double throw switch is operational reliability. These switches provide fail-safe circuit selection without requiring complex programming or external power sources. Their mechanical nature means they maintain their position during power outages, unlike some electronic alternatives. This simplicity translates to easier troubleshooting and maintenance for your technical staff. When you need a straightforward, dependable way to control two circuits from a single point, the SPDT switch remains one of the most trusted solutions in electrical engineering.
